Logic Expressions

Logic Expressions

Logic Expressions

• A logic expression is a way of expressing a logic gate or logic circuit as an equation

• The output appears on the left of the equals sign with the inputs and logic gates on the right

Gate	Symbol	Truth Table	Logic Expression

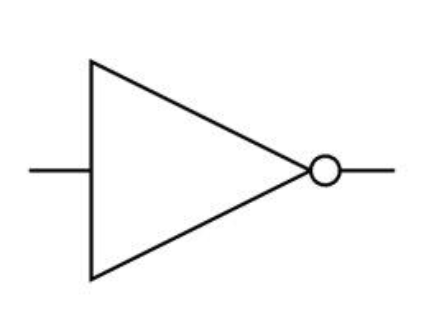

NOT		A Z 0 1 1 0	Z = NOT A

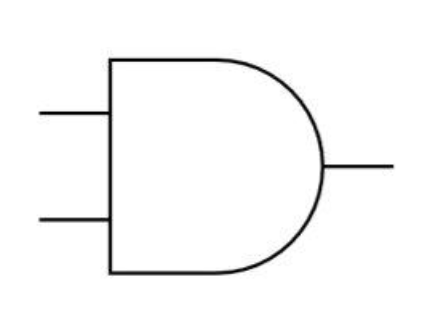

AND		A B Z 0 0 0 0 1 0 1 0 0 1 1 1	Z = A AND B

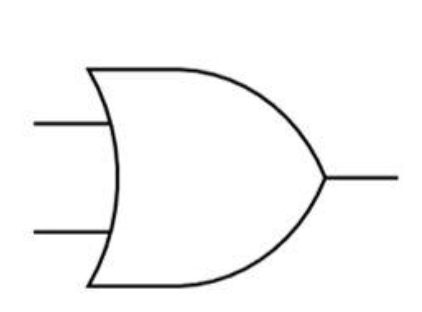

OR		A B Z 0 0 0 0 1 1 1 0 1 1 1 1	Z = A OR B

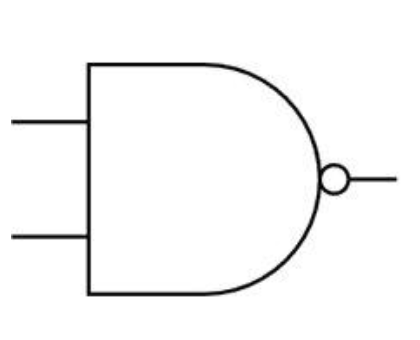

NAND		A B Z 0 0 1 0 1 1 1 0 1 1 1 0	Z = A NAND B

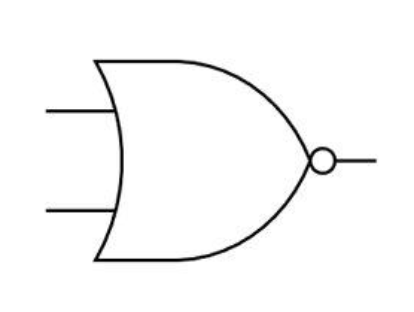

NOR		A B Z 0 0 1 0 1 0 1 0 0 1 1 0	Z = A NOR B

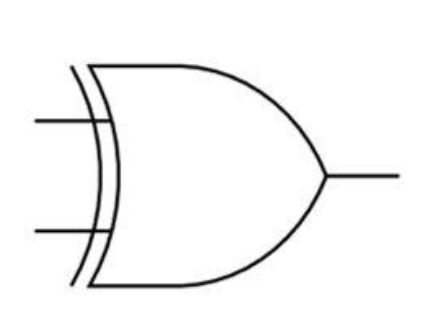

XOR		A B Z 0 0 0 0 1 1 1 0 1 1 1 0	Z = A XOR B

• Logic circuits containing multiple gates can also be expressed as logic expressions/statements

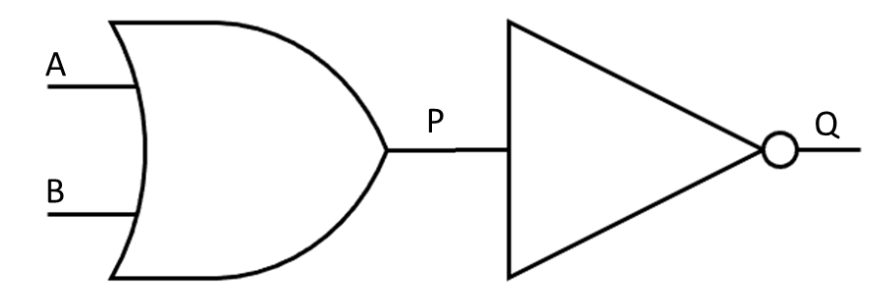

An example logic circuit containing two inputs

• The logic circuit above can be expressed as the logic expression Q= NOT(A OR B)

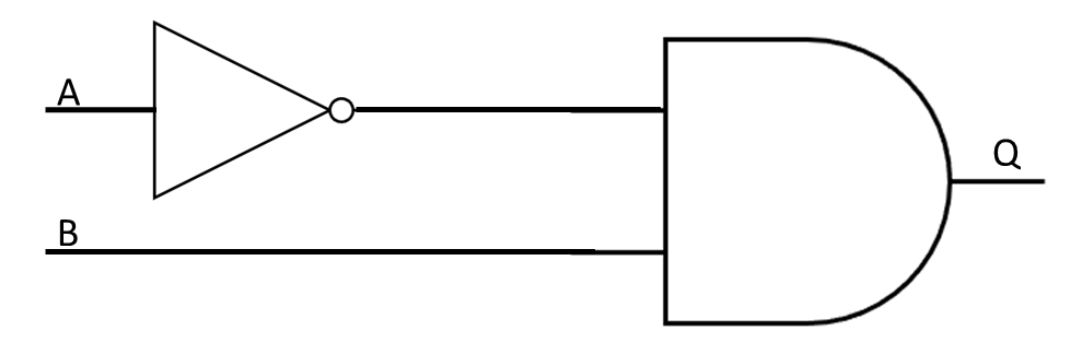

An example logic circuit containing two inputs

• The logic circuit above can be expressed as the logic expression Q= (NOT A) AND B

An example logic circuit containing three inputs

• The logic circuit above can be expressed as the logic expression P = ((NOT A) OR B) NAND C

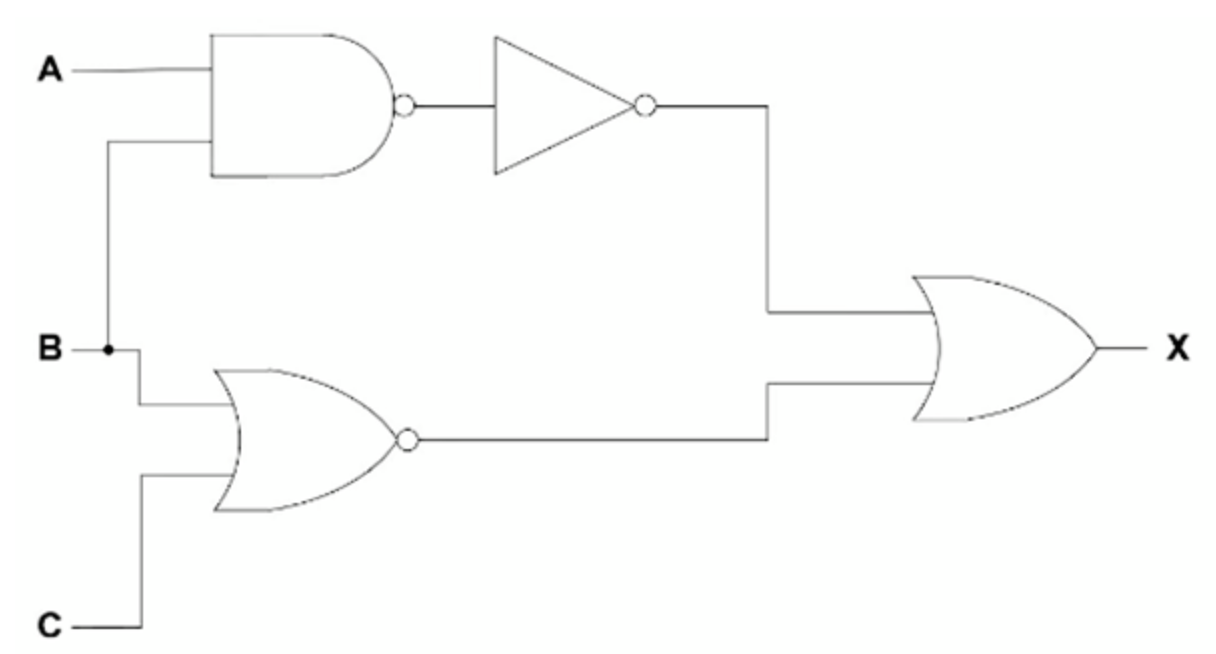

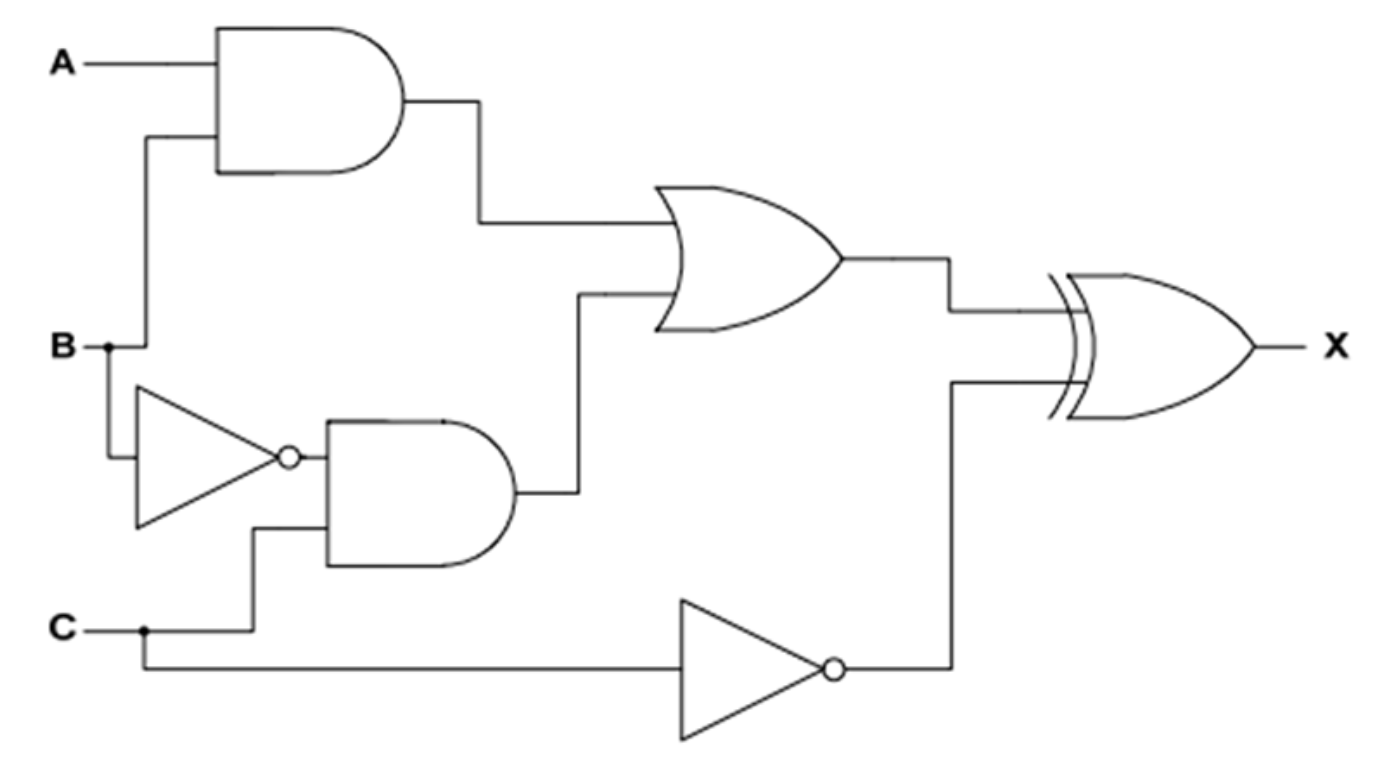

An example logic circuit containing three inputs

• This logic circuit above can be expressed as X = NOT (A NAND B) OR (B NOR C)
