Bearings

What are bearings?

• Bearings are a way of describing an angle

  • They are commonly used in navigation

• There are three rules which must be followed when using a bearing:

  • They are measured from North

    • North is usually straight up on a scale drawing or map, and should be labelled on the diagram

  • They are measured clockwise

  • The angle should always be written with 3 digits

    • 059° instead of just 59°

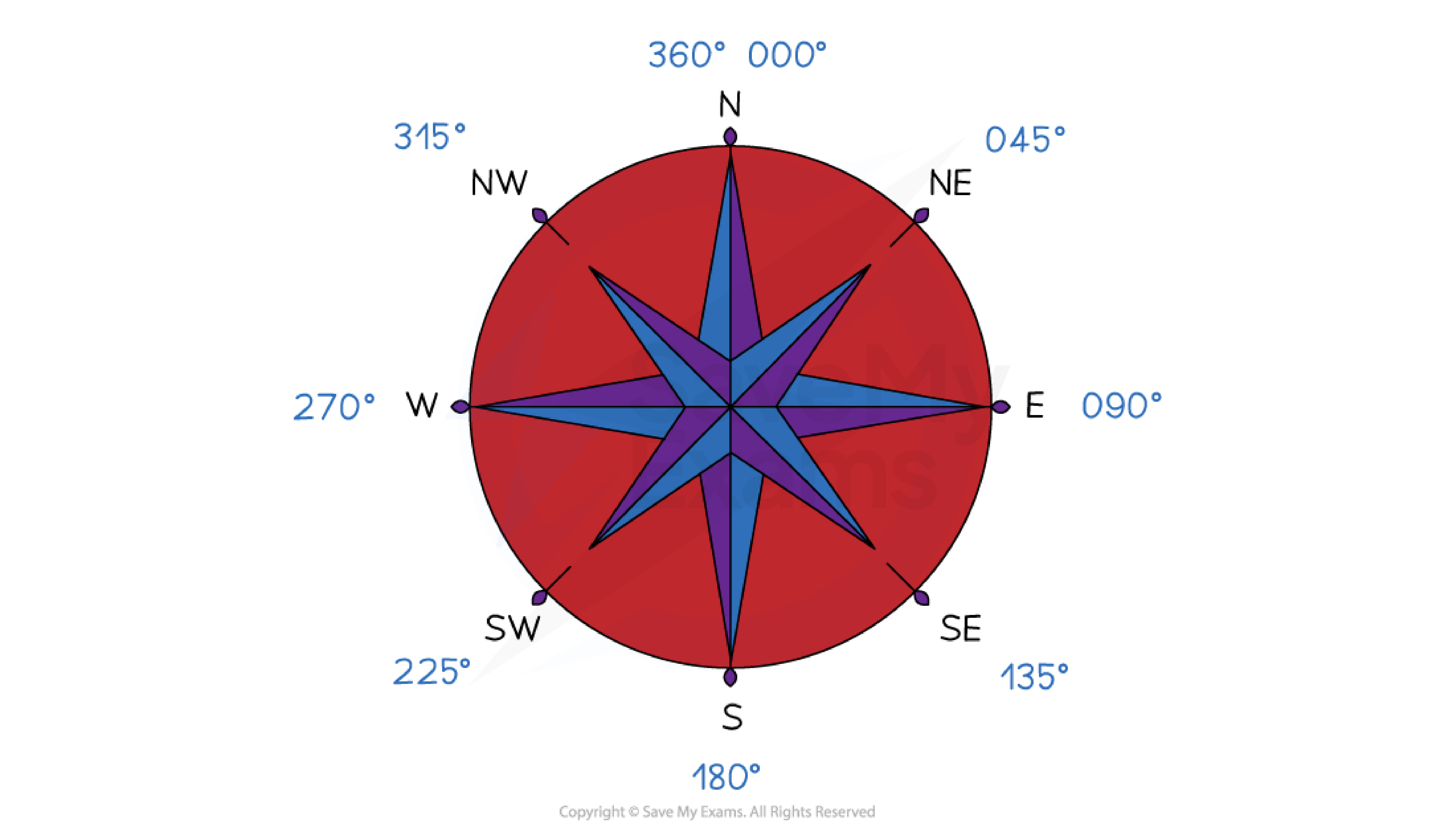

• Knowing the compass directions and their respective bearings can be helpful

How do I find a bearing between two points?

• Identify where you need to start

  • "The bearing of A from B" means start at B and find the bearing to A

  • "The bearing of B from A" means start at A and find the bearing to B

• Draw a North line at the starting point

• Draw a line between the two points

• Measure the angle between the North line and the line joining the points

  • Measure clockwise from North

• Write the angle using 3 figures

How do I draw a point on a bearing?

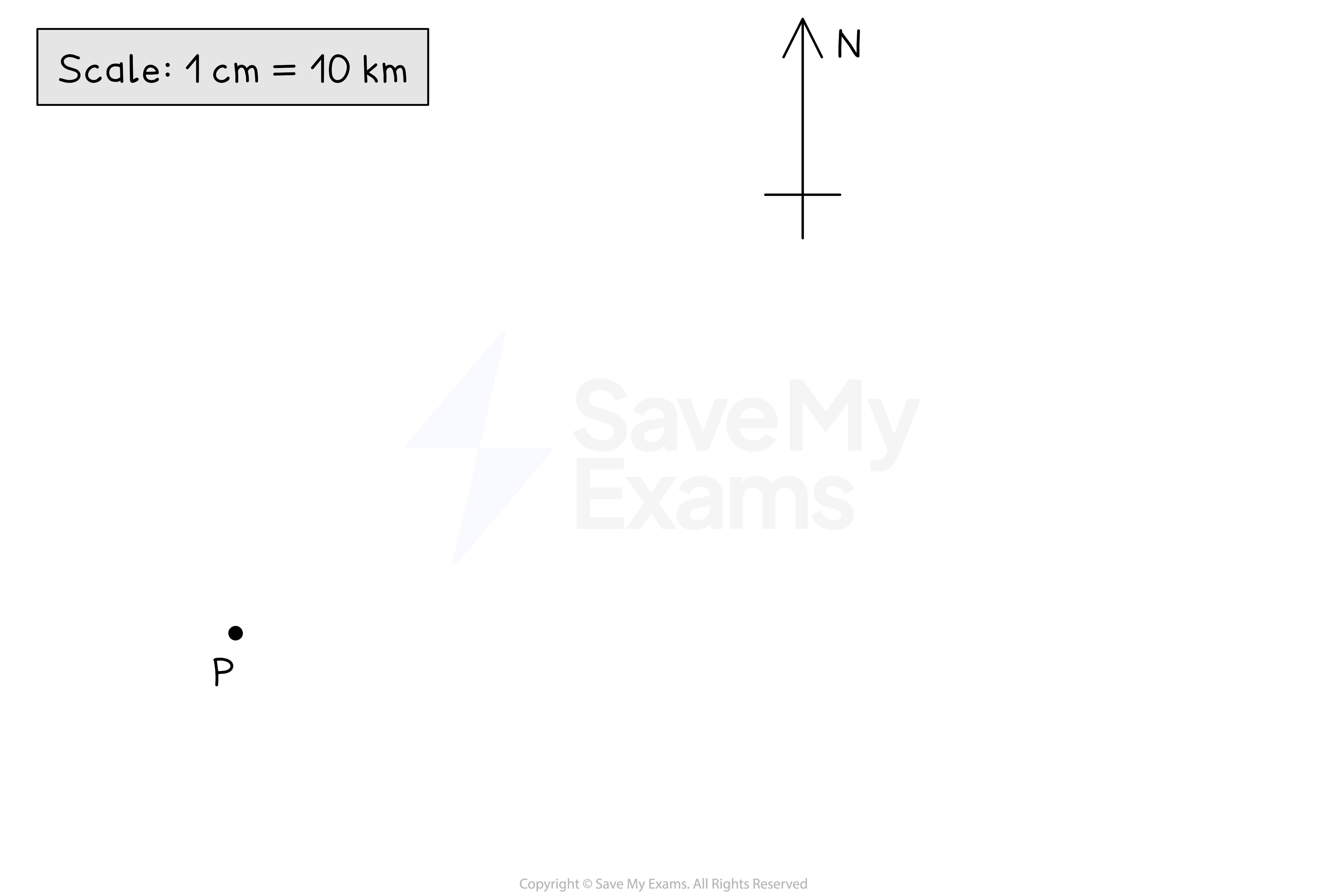

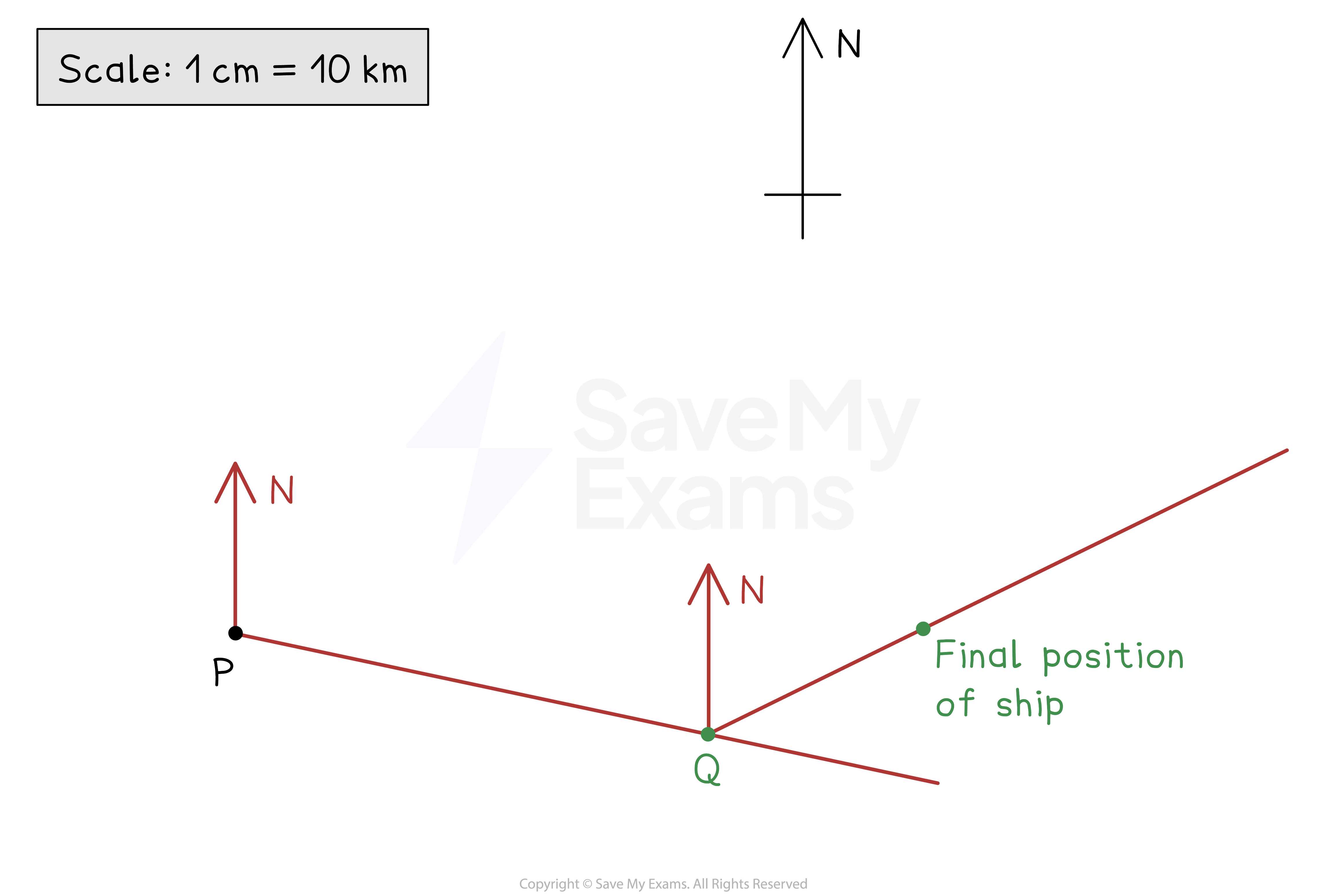

• You might be asked to plot a point that is a given distance from another point and on a given bearing

• STEP 1
  Draw a North line at the point you wish to measure the bearing from

  • If you are given the bearing from A to B draw the North line at A

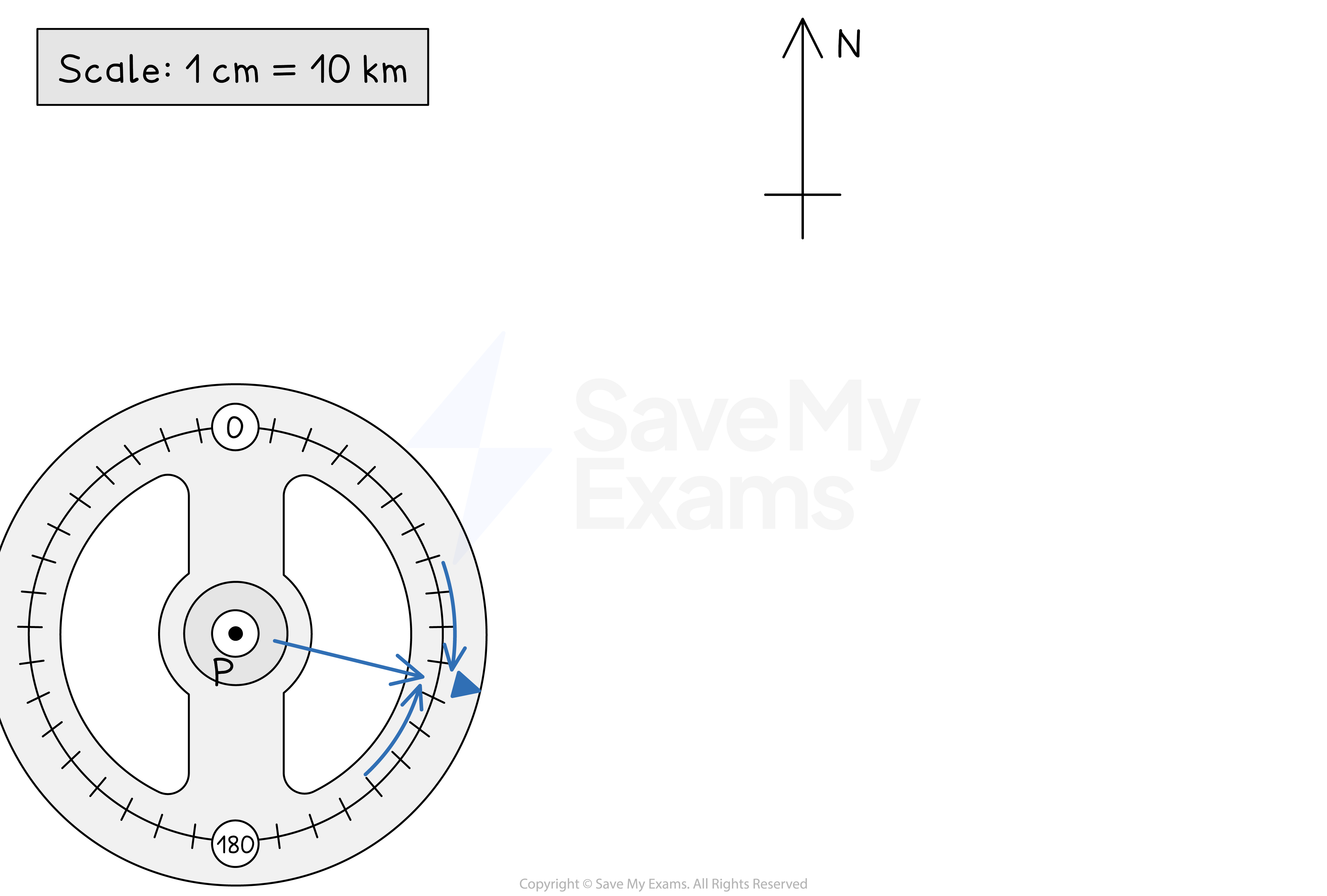

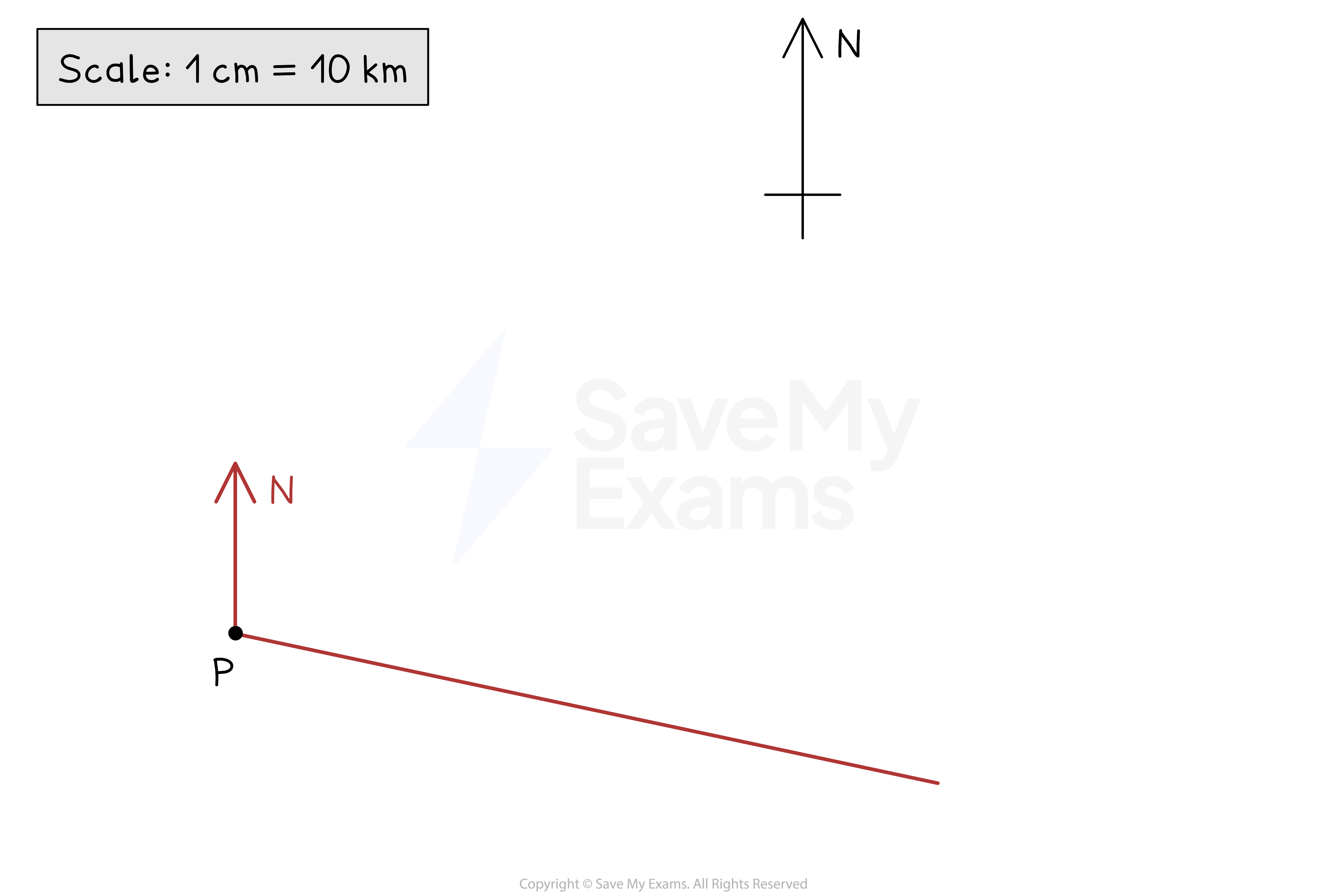

• STEP 2
  Measure the angle of the bearing given from the North line in the clockwise direction

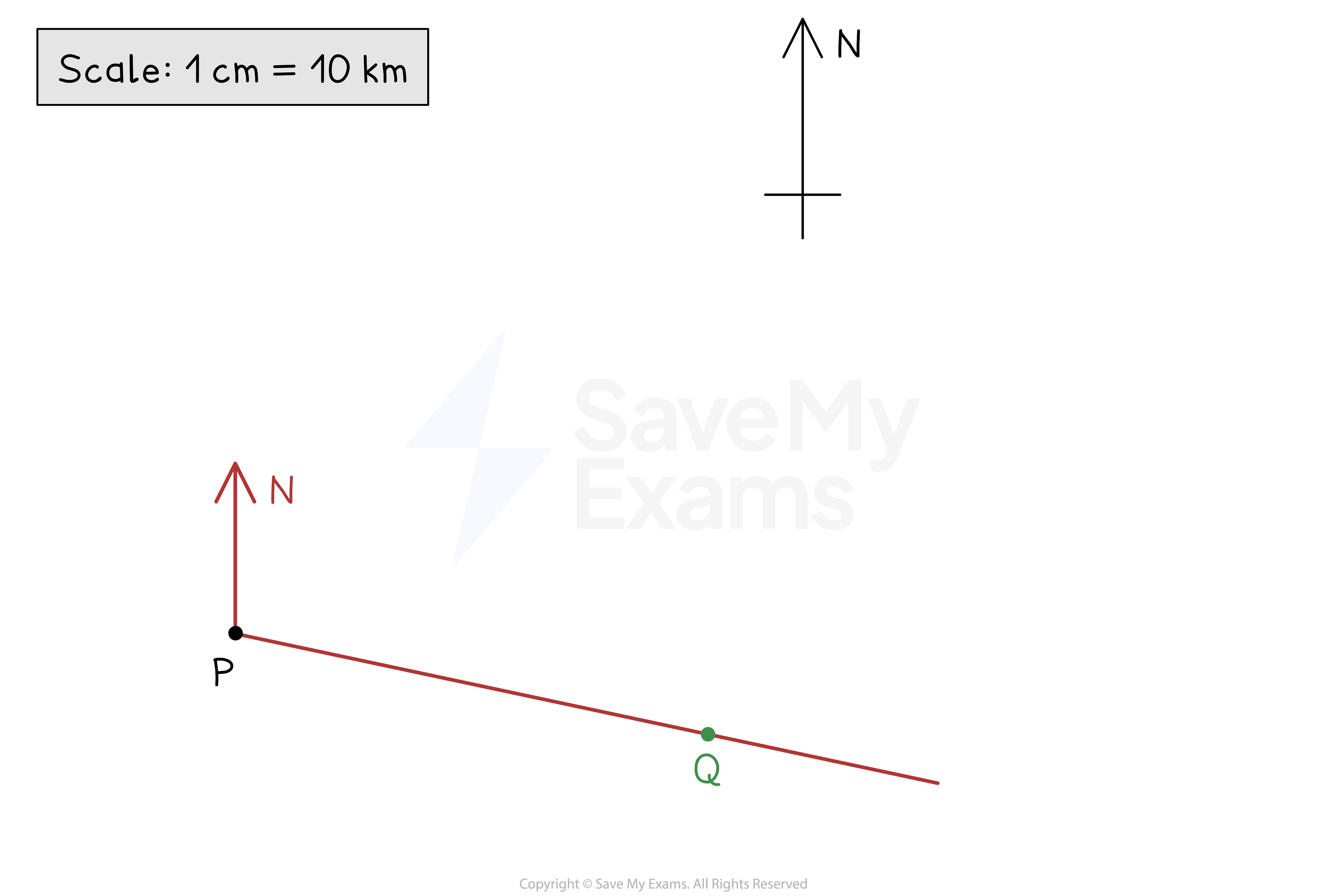

• STEP 3
  Draw a line and add the point B at the given distance

How do I find the bearing of B from A if I know the bearing of A from B?

• If the bearing of A from B is less than 180°

  • Add 180° to it to find the bearing of B from A

• If the bearing of A from B is more than 180°

  • Subtract 180° from it to find the bearing of B from A

How do I answer trickier questions involving bearings?

• Bearings questions may involve the use of Pythagoras or trigonometry to find missing distances (lengths) and directions (angles)

  • You should always draw a diagram if there isn't one given
