Enlargements

What is an enlargement?

An enlargement changes the size and position of a shape
The length of each side of the shape is multiplied by a scale factor
- If the scale factor is greater than 1 then the enlarged image will be bigger than the original object
- If the scale factor is between 0 and 1 (fractional) then the enlarged image will be smaller than the original object
The centre of enlargement determines the position of the enlarged image
- If the scale factor is greater than 1 then the enlarged image will be further away from the centre of enlargement
- If the scale factor is between 0 and 1 then the enlarged image will be closer to the centre of enlargement

How do I enlarge a shape?

STEP 1
Pick a vertex of the shape and count the horizontal and vertical distances from the centre of enlargement
STEP 2
Multiply both the horizontal and vertical distances by the given scale factor
STEP 3
Start at the centre of enlargement and measure the new distances to find the enlarged vertex
STEP 4
Repeat the steps for the other vertices
- You might be able to draw the enlarged shape from the first vertex by multiplying the original lengths by the scale factor
  - This can be done quickly if the shape is made up of vertical and horizontal lines
STEP 5
Connect the vertices on the enlarged image and label it

Worked example

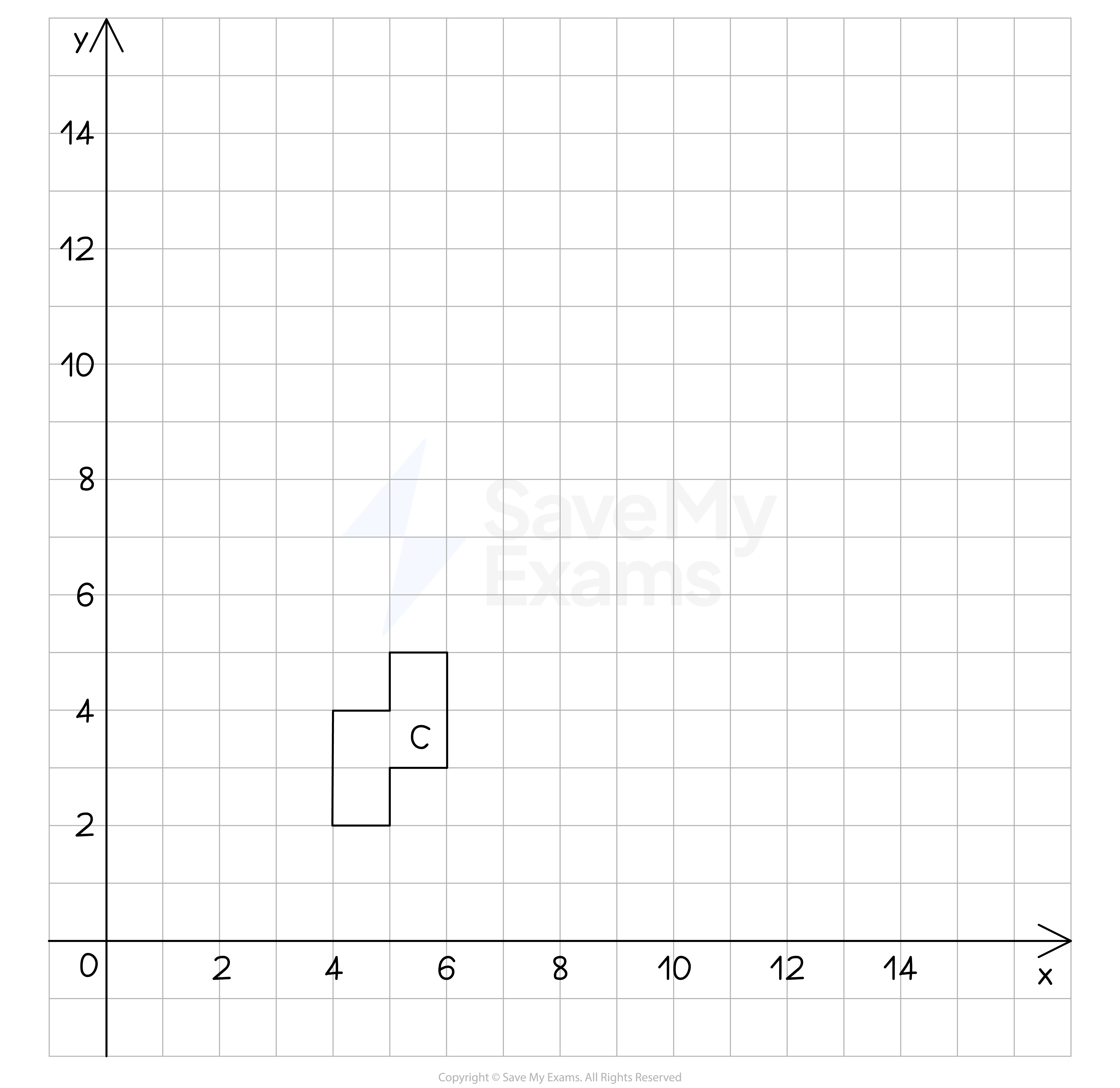

(a) On the grid below enlarge shape C using scale factor 2 and centre of enlargement (2, 1).

Label your enlarged shape C'.

Answer:

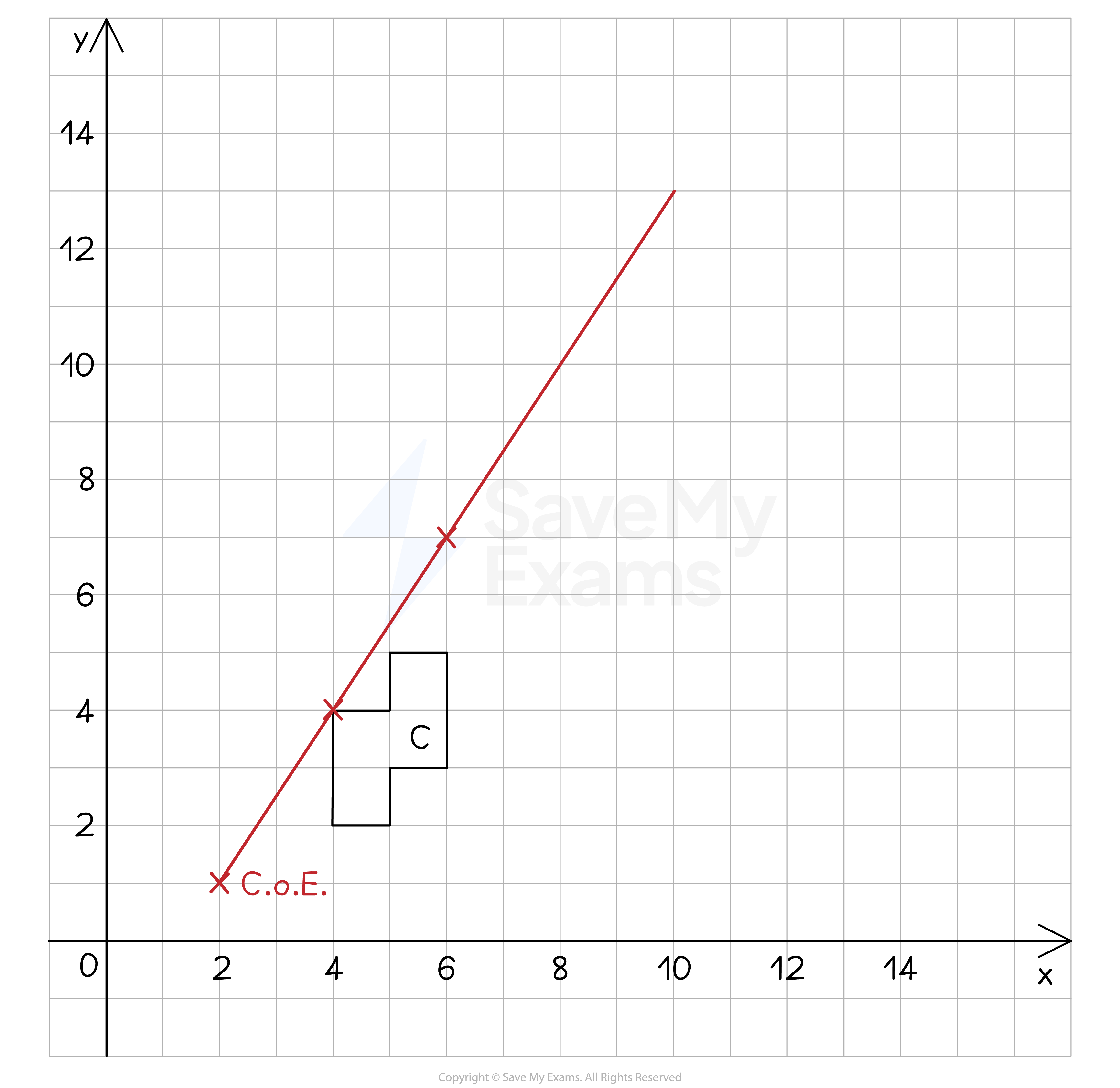

Start by marking on the centre of enlargement (CoE).
Count the number of squares in both a horizontal and vertical direction to go from the CoE to one of the vertices on the original object, this is 2 to the right and 3 up in this example.
As the scale factor is 2, multiply these distances by 2, so they become 4 to the right and 6 up.
Count these new distances from the CoE to the corresponding point on the enlarged image and mark it on.
Draw a line through the CoE and the pair of corresponding points, they should line up in a straight line.

Repeat this process for each of the vertices on the original object (or at least 2).
Join adjacent vertices on the enlarged image as you go.

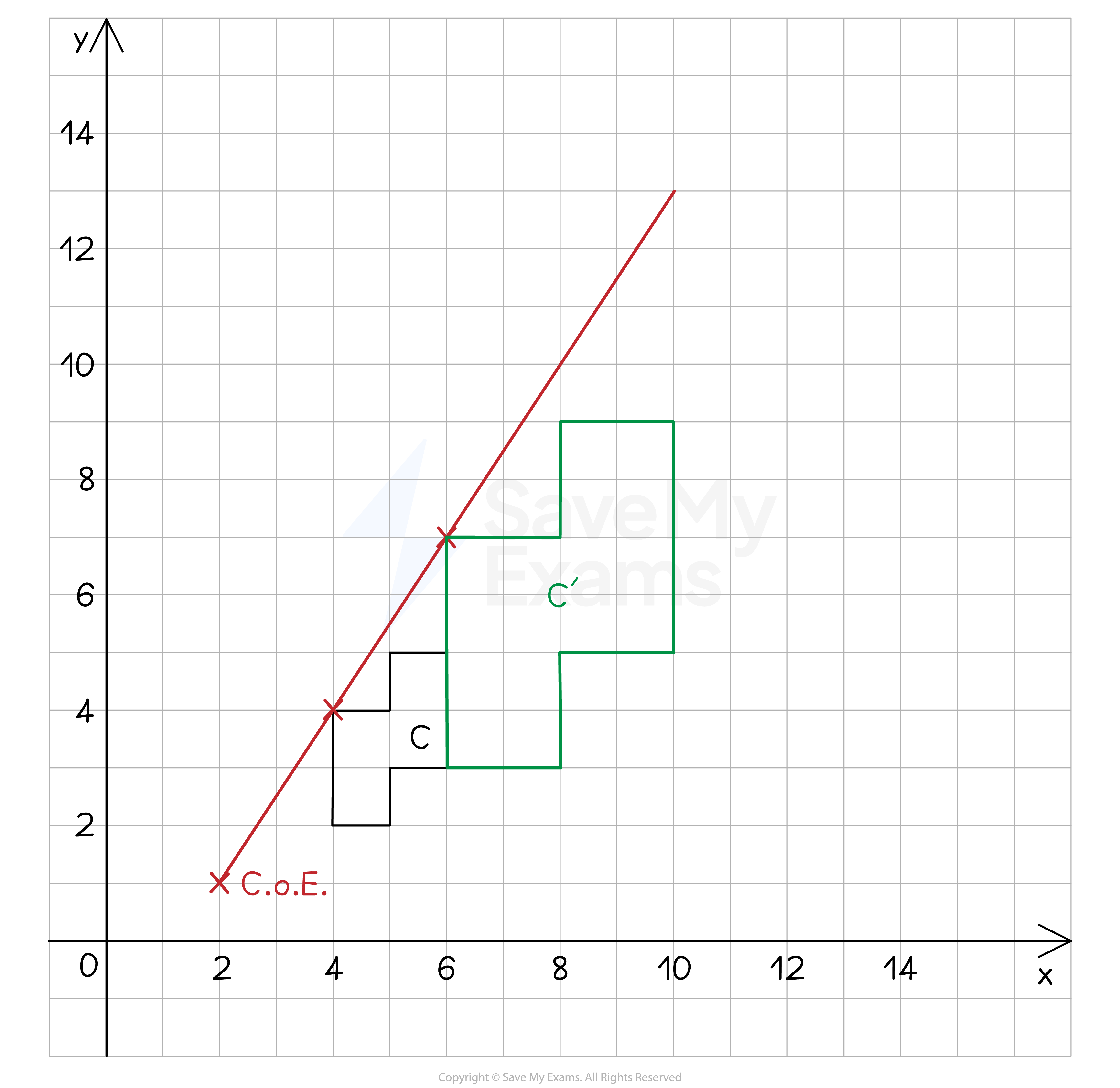

Label the enlarged image C'.

(b) On the grid below enlarge shape C using scale factor $\frac{1}{2}$ and centre of enlargement (4, 2).

Write down the four vertices of your enlarged shape.

$cie-igcse-core-fractional-enlargements-rn-we-a1-image$

Answer:

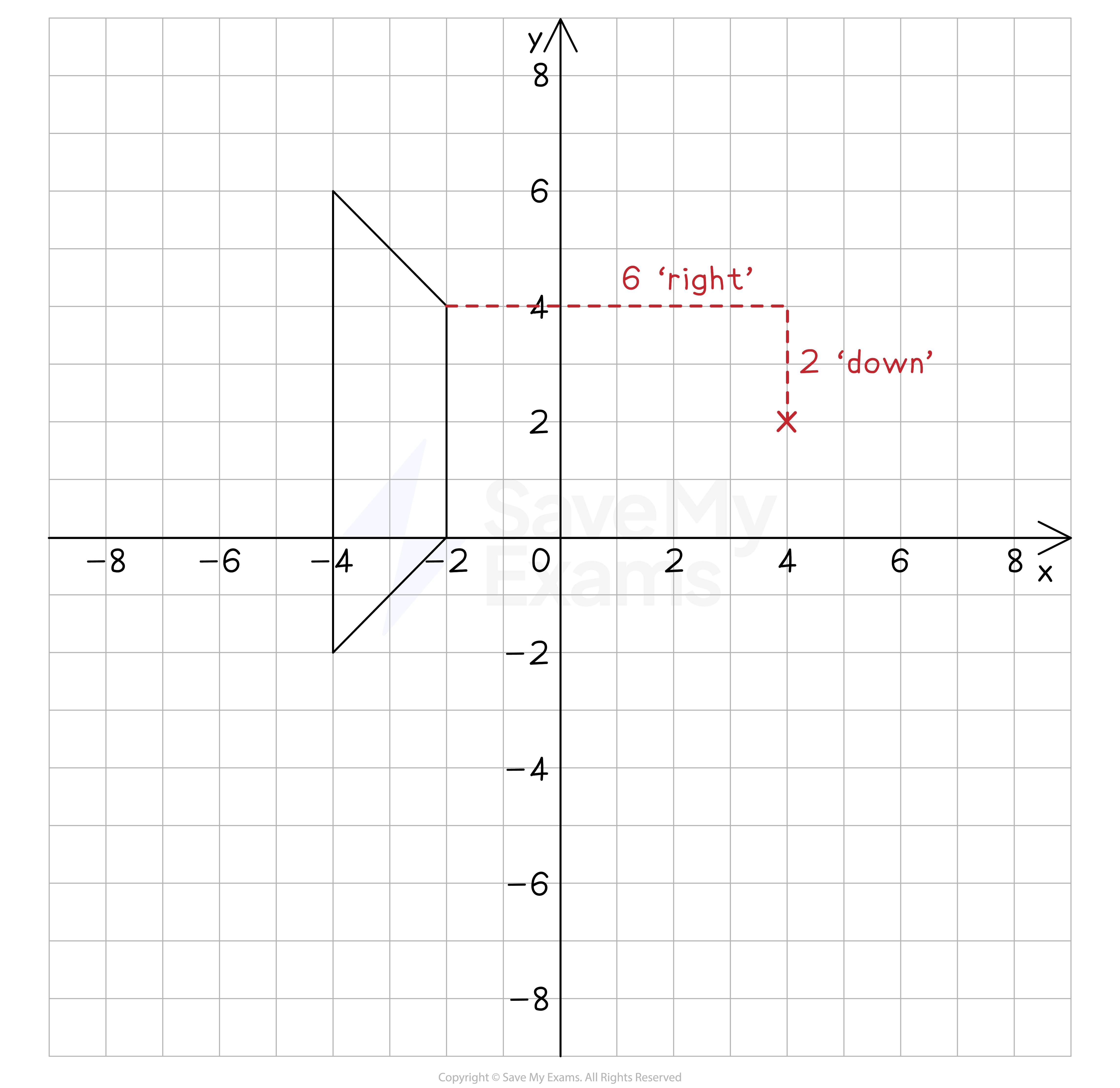

Mark the centre of enlargement at (4, 2)
Count the number of squares horizontally and vertically to any vertex - we've chosen the vertex at (-2, 4)

$cie-igcse-core-fractional-enlargements-rn-we-a2-image$

Multiply these distance by the scale factor, $\frac{1}{2}$

6 'right $\times \frac{1}{2} = 3$ 'right'

2 'down' $\times \frac{1}{2} = 1$ 'down'

Count these new distances (which should be smaller than the originals) from the CoE to find the corresponding point on the new image and mark it on

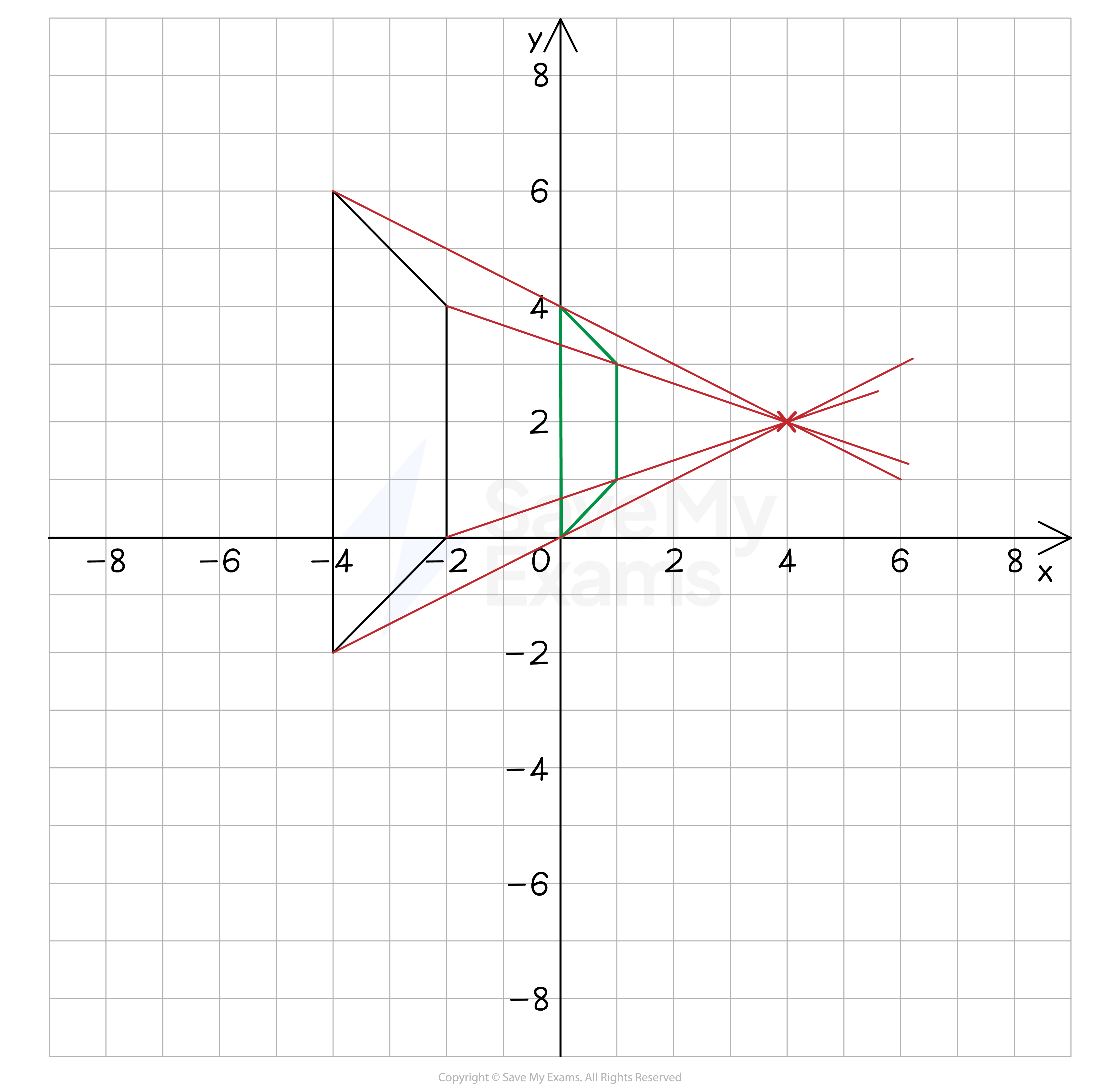

Repeat as required and draw lines through corresponding vertices and the CoE as a check

$cie-igcse-core-fractional-enlargements-rn-we-a3-image$

The four vertices of the enlarged shape are (0, 0), (0, 4), (1, 3) and (1, 1)

How do I describe an enlargement?

To describe an enlargement, you must:
- State that the transformation is an enlargement
- State the scale factor
  - This may be an integer or a fraction
- Give the coordinates of the centre of enlargement
To find the scale factor:
- Pick a side of the original shape
- Identify the corresponding side on the enlarged image
  - For a fractional enlargement, the side on the enlarged image will be smaller than the corresponding side on the original image
- Divide the length of the enlarged side by the length of the original side
To find the centre of enlargement:
- Pick a vertex of the original shape
- Identify the corresponding vertex on the enlarged image
- Draw a line going through these two vertices
- Repeat this for the other vertices of the original shape
- These lines will intersect at the centre of enlargement

How do I reverse an enlargement?

If a shape has been enlarged, you can perform a single transformation to return the shape to its original size and position
An enlargement can be reversed by multiplying the enlarged shape by the reciprocal of the original scale factor
- The centre of enlargement is the same
For a shape enlarged by a scale factor of 3 with centre of enlargement (-1, 6)
- The reverse transformation is
  - an enlargement of scale factor $\frac{1}{3}$
  - with centre of enlargement (-1, 6)

Worked example

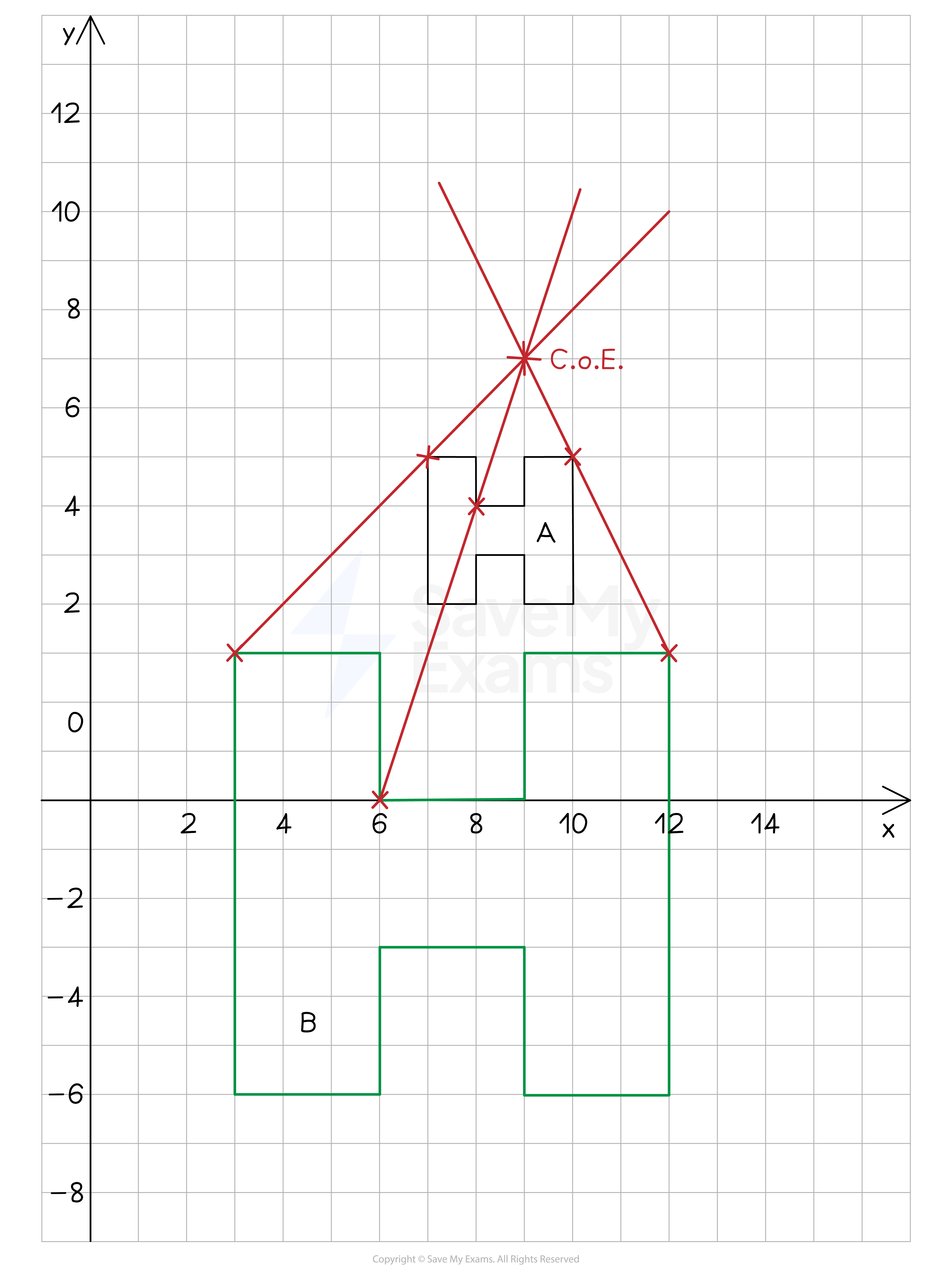

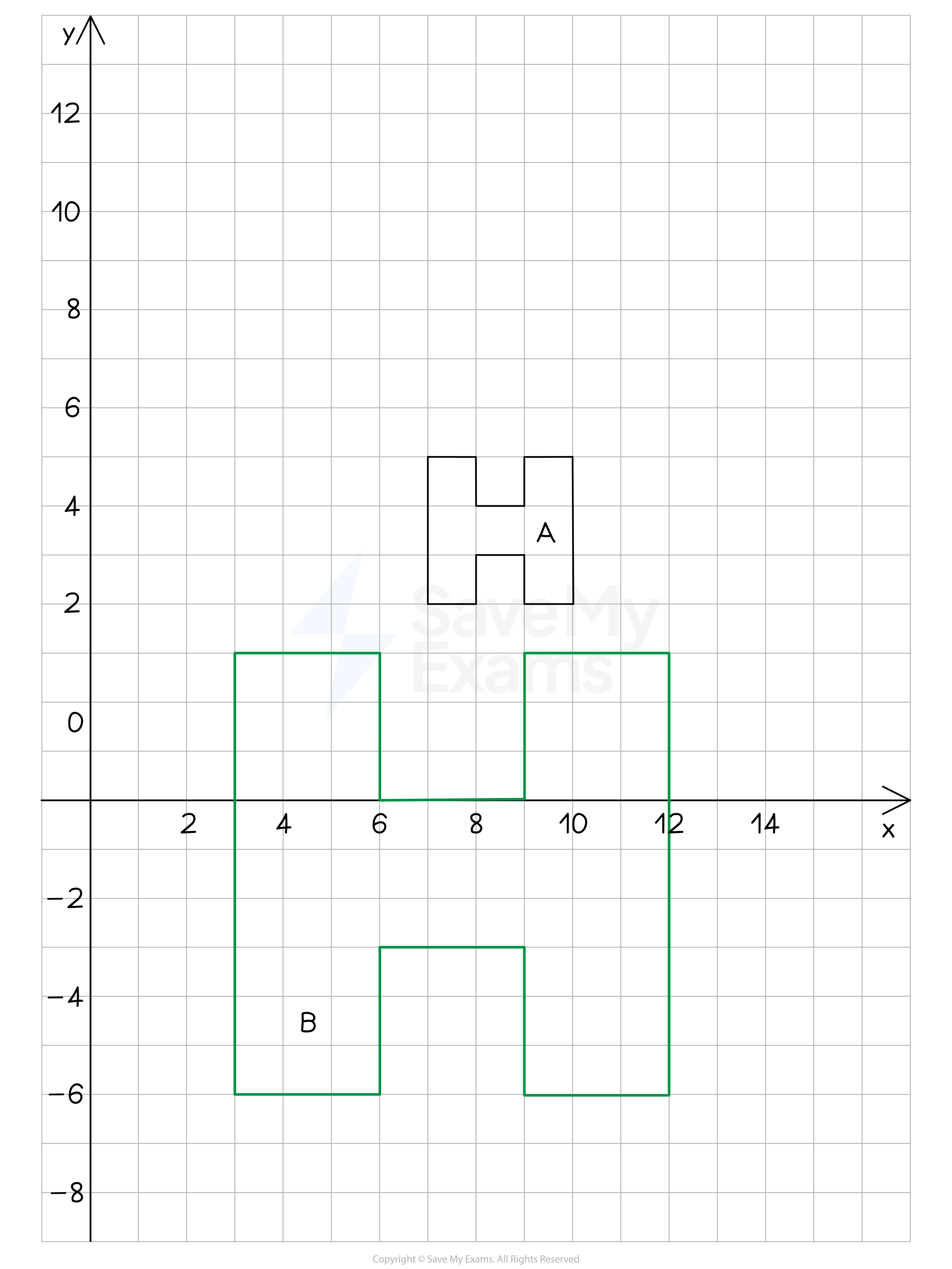

Describe fully the single transformation that creates shape B from shape A.

Answer:

We can see that the image is larger than the original object, therefore it must be an enlargement.
As the enlarged image is bigger than the original object, the scale factor must be greater than 1.
Compare two corresponding edges on the object and the image to find the scale factor.

The height of the original "H" is 3 squares
The height of the enlarged "H" is 9 squares

$∴ Scale Factor = \frac{9}{3} = 3$

Draw a straight line through the CoE and a pair of corresponding points on the original object and the enlarged image.
Repeat this step for as many vertices as you feel you need to so you can confidently locate the CoE.
Do this for all pairs of vertices to be sure!
The point of intersection of the lines is the CoE.

Shape A has been enlarged using a scale factor of 3 and a centre of enlargement (9, 7) to create shape B

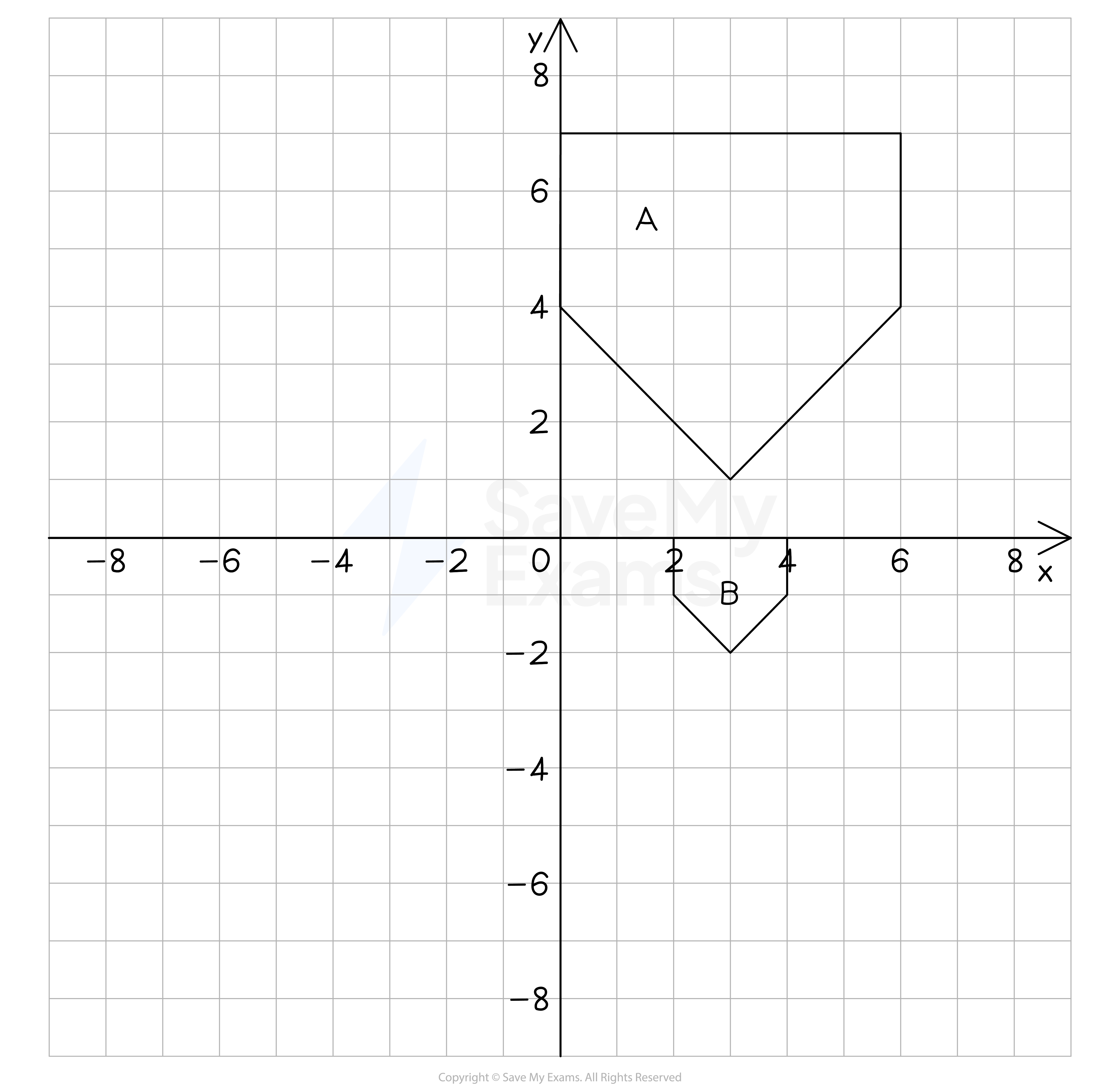

(b) Describe fully the single transformation that creates shape B from shape A.

$cie-igcse-core-fractional-enlargements-rn-we-b1-image$

Answer:

We can see the image is smaller than the original so it is a fractional enlargement
Compare two corresponding edges to find the scale factor - we've used the top edge

scale factor = $\frac{new edge}{old edge} = \frac{2}{6} = \frac{1}{3}$

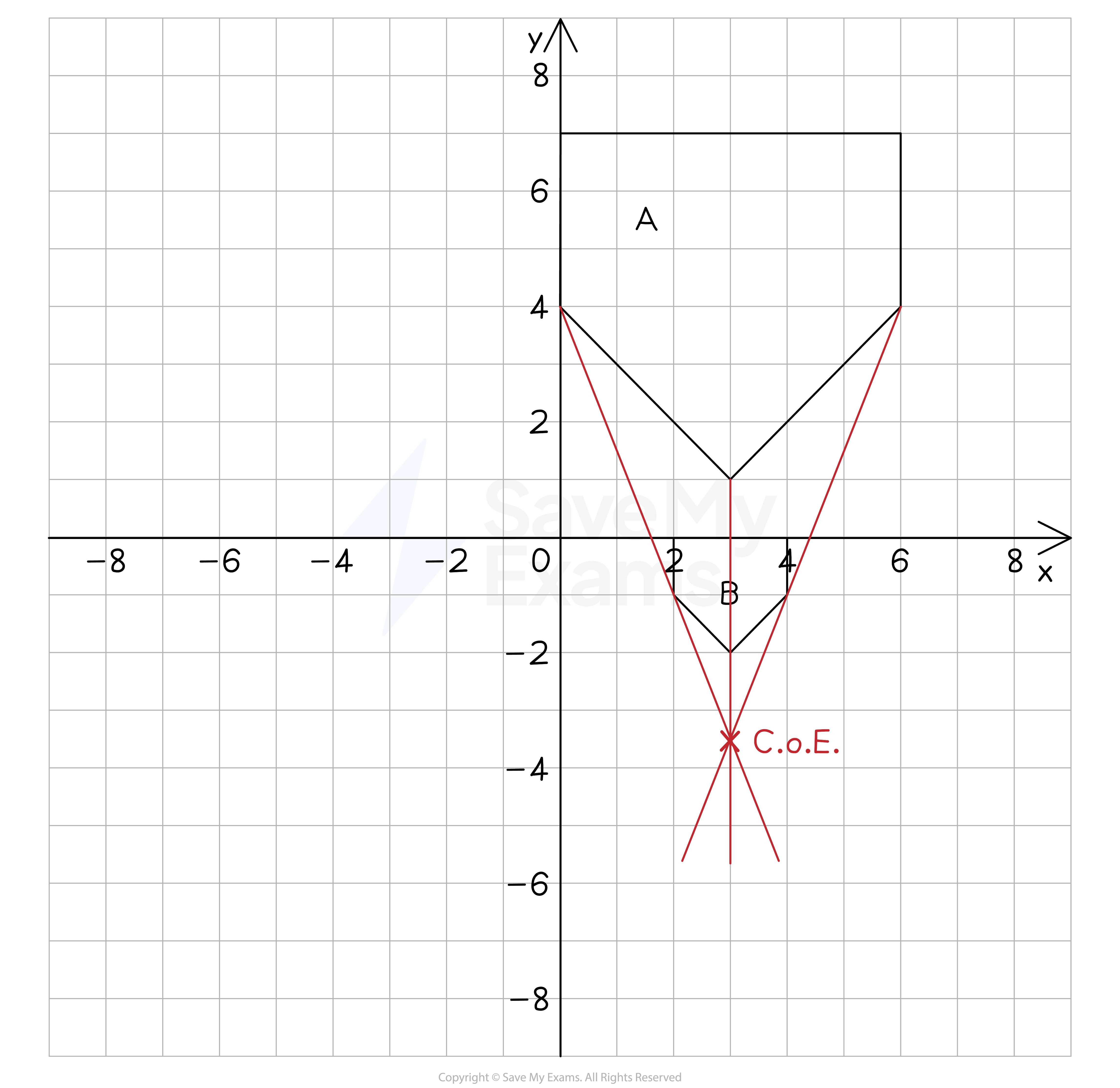

Draw straight lines through corresponding vertices on the original shape
Repeat this 3-4 times and you should find the lines intersect at the same point
This point will be the CoE

$cie-igcse-core-fractional-enlargements-rn-we-b2-image$

Shape A has been enlarged using a scale factor of $\frac{1}{3}$ and a centre of enlargement (3, -3.5) to create shape B

Negative Enlargementsvideo

Negative Enlargements

Negative enlargements

How do I enlarge a shape if it has a negative scale factor?

You will still need to perform enlargements with negative scale factors
- it is possible but unusual to be asked to identify one

Follow the same process as you would for a positive scale factor enlargement, the key things to look out for are:
- the orientation of the object is changed, it is rotated by 180^o
- the distance between the centre of enlargement (CoE) and the enlarged image, is measured on the opposite side of the CoE

How do I reverse a negative enlargement?

If a shape has undergone a negative enlargement, you can perform a single transformation to return the shape to its original size and position
An enlargement can be reversed by multiplying the enlarged shape by the reciprocal of the original scale factor
- the sign of the scale factor remains negative
- the centre of enlargement is the same
For a shape enlarged by a scale factor of $- \frac{1}{2}$ with centre of enlargement (0, 5)
- The reverse transformation is
  - an enlargement of scale factor -2
  - with centre of enlargement (0, 5)

Worked example

On the grid below enlarge shape F using scale factor $- \frac{1}{3}$ and centre of enlargement $(6, - 1)$ .

Label this shape F'.

If the area of F is 45 cm² write down the area of F'.

Answer:

Start by marking the centre of enlargement (CoE) (6, -1) and selecting a starting vertex

Count the horizontal and vertical distances from the vertex to the CoE
Multiply those distances by the scale factor

Vertex at (-4, 3)

Distance to CoE from vertex on original object: 3 to the right and 3 up

Distances from CoE to corresponding vertex on enlarged image: $3 \times \frac{1}{3} = 1$ to the right and $3 \times \frac{1}{3} = 1$ up

Count the new distances from the CoE, on the other side from the original object
Mark on the position of the corresponding point on the enlarged image

Draw a straight line through the corresponding vertices and the CoE to check that they line up

Repeat this process for each vertex in turn

Connect the vertices as you go around so that you don't forget which should connect to which

Remember, your enlarged image will be rotated by 180^o

The length scale factor is $\frac{1}{3}$ , meaning that each edge of the enlarged image is $\frac{1}{3}$ the length of the corresponding edge on the original object

Find the area scale factor by squaring the length scale factor

$Area scale factor = {(\frac{1}{3})}^{2} = \frac{1}{9}$

Multiply the area of the original object by the area scale factor to find the area of the enlarged image

$45 \times \frac{1}{9}$

$5 {cm}^{2}$
