Thin Lenses

Features of Lens Diagramsvideo

Features of Lens Diagrams

• Lens diagrams can be described using the following terms:

  • Principal axis

  • Principal focus, or focal point

  • Focal length

• The principal axis is defined as:

  A line which passes through the centre of a lens

• The principal focus, or focal point, is defined as:

  The point at which rays of light travelling parallel to the principal axis intersect the principal axis and converge or the point at which diverging rays appear to proceed

• Focal length is defined as:

  The distance between the centre of the lens and the principal focus

Converging & Diverging Lenses

Converging & Diverging Lenses

• A lens is a piece of equipment that forms an image by refracting light

• There are two types of lens:

  • Converging

  • Diverging

Converging Lenses

• In a converging lens, parallel rays of light are brought to a focus

  • This point is called the principal focus

• This lens is sometimes referred to as a convex lens

• The distance from the lens to the principal focus is called the focal length

  • This depends on how curved the lens is

  • The more curved the lens, the shorter the focal length

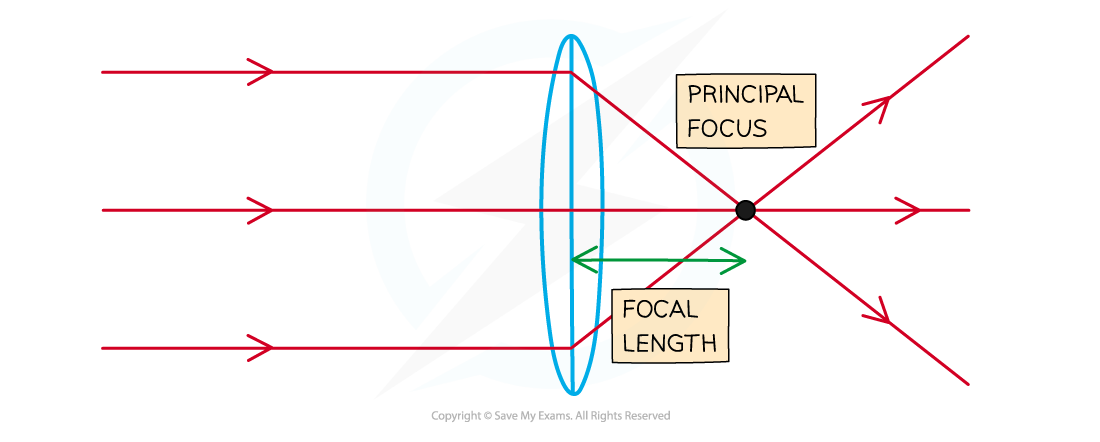

Converging Lens

The focal length is the distance from the lens to the principal focus. In a converging lens, parallel light rays converge on the principal focus.

Diverging Lenses

• In a diverging lens, parallel rays of light are made to diverge (spread out) from a point

  • This lens is sometimes referred to as a concave lens

• The principal focus is now the point from which the rays appear to diverge from

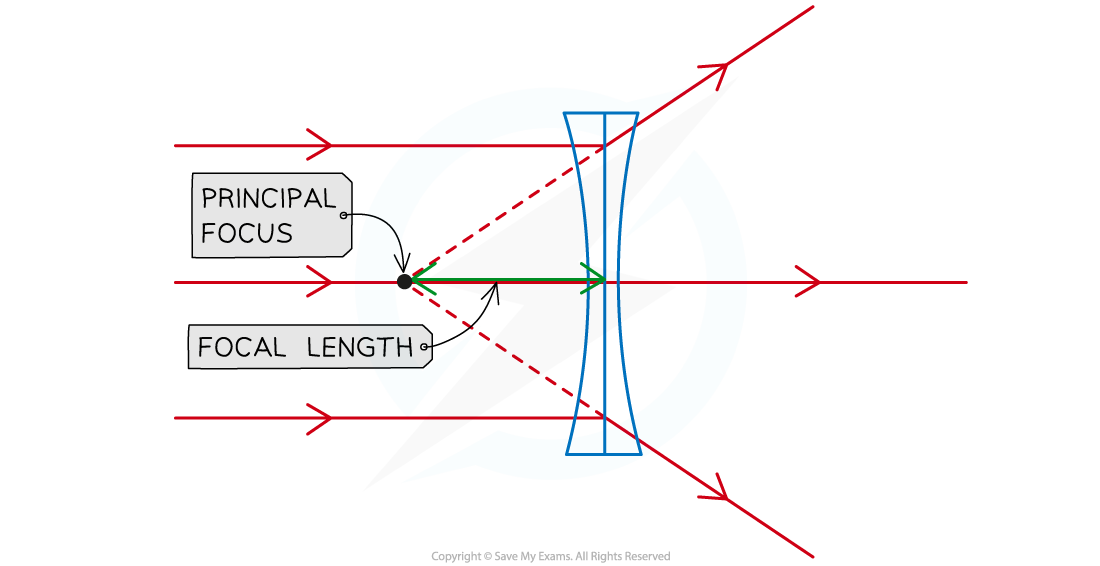

Diverging Lens

Parallel rays from a diverging lens appear to diverge from the principal focus

Representing Lenses

• In diagrams, the following symbols are often used to represent each type of lens:

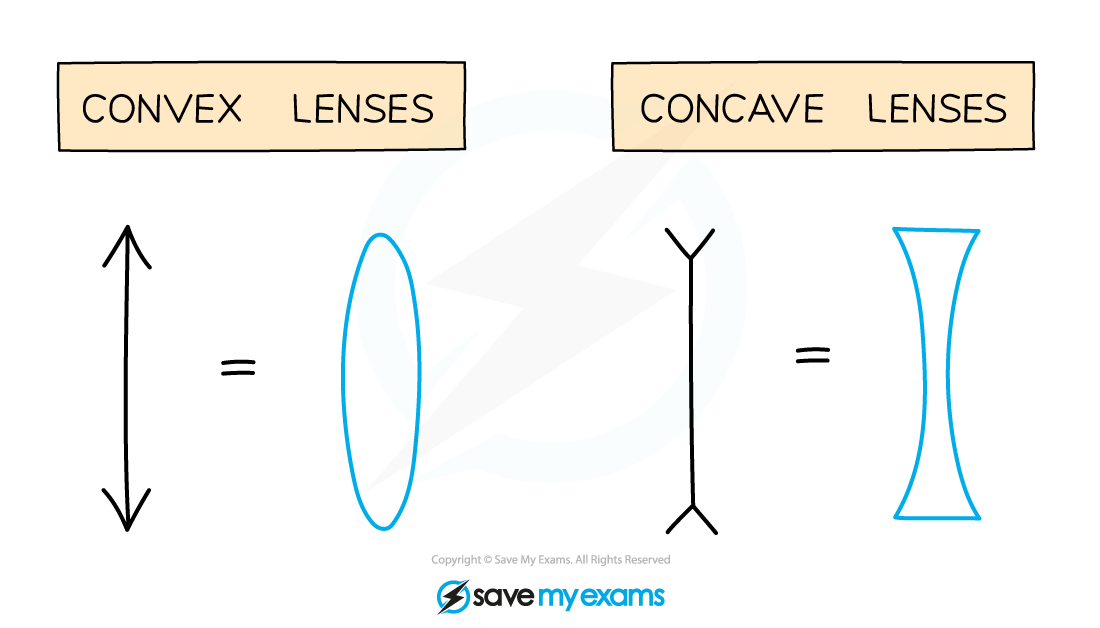

Symbols for Lenses

Concave and convex symbols
